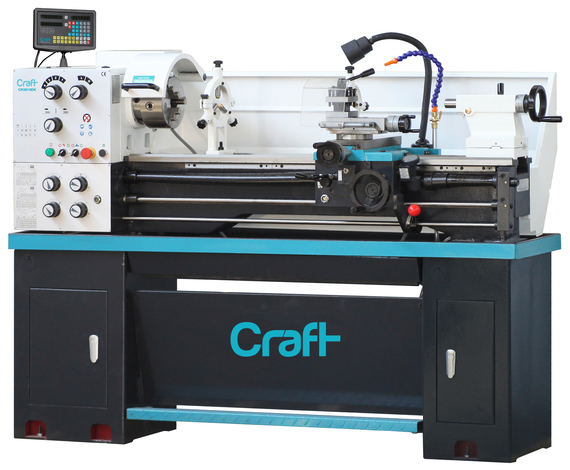

CR3610 DK Conventional Lathe Machine
- Technical Detail
- Description
- Involvement of Shipment
- Optional Accessories
| CR3610 DK Conventional Lathe Machine | |
|---|---|
| Main Motor Power | 1,5 kW, 400 V |
| Swing Diameter over Machine Bed | 360 mm |
| Swing Diameter over Bridge | 502 mm |
| Swing Diameter over Cross Slide (Carriage) | 223 mm |
| Bed Width | 187 mm |
| Center Width | 1000 mm |
| Speed Range | 70-2000 rpm |
| Number of Steps | 8 |
| Spindle Taper | MK6 |
| Spindle Holder | D2-5 |
| Spindle Bore | 52 mm |
| Compound Rest Travel | 130 mm |
| Cross Slide Travel | 160 mm |
| Tailstock Spindle (Taper) | MK3 |
| Tailstock Sleeve Stroke | 120 mm |
| Longitudinal Feed | 0.052-1.392 mm/rev |
| Cross Feed | 0,014-0,380 mm/rev |
| Pitch – metric | 0,4-7 mm |
| Pitch – inches | 16x16 |
| Machine Size | 1930x725x1350 mm |
| Weight | 610 Kg |
• Hardened and grinded z-axis guideway
• 52 mm spindle
• Safety Guard for Lathe Chuck with micro switch
• Emergency Stop Button
• Siemens Electrical System
• Lathe Foot Brake
• Protective Chuck and Tool Holder Shields
• Coolant System
• CE Standard
• 3 jaw lathe chuck – Ø200 mm
• 4 jaw lathe chuck – Ø200 mm
• Face plate – Ø250 mm
• Steady Rest
• Follow Rest
• MT3 live center
• MT3 dead center
• MK5/MT3 Reduction Sleeves
• Thread Gauge
• Quadruple tool holder
• Halogen machine lamp
• Quadruple tool holder
• Replaceable Gear Set
• Operating Tools
310103: MT3 Live center
320103: 20X100mm Quick change tool holder set
